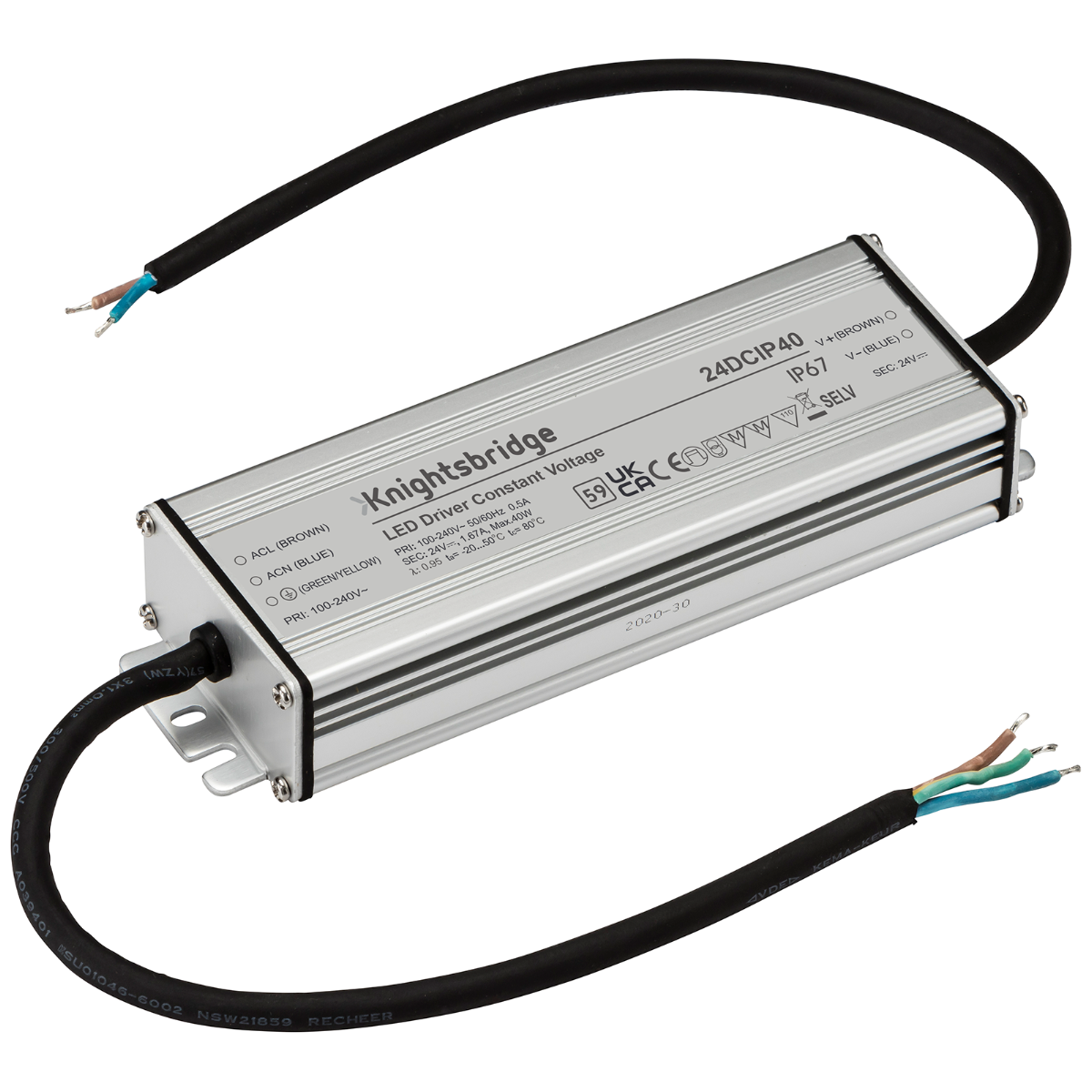

Knightsbridge Driver, Constant Voltage IP67
SKU:
24DCIP40
Brand:
Knightsbridge
Available to Order
Key Features
✓ Ingress protection rated IP67
✓ Energy efficient 40 W consumpt...
✓ 3 Years manufacturer warranty
📝 Product Description
24V IP67 40W DC LED Driver - Constant Voltage
📋 Detailed Information
Driver, Constant Voltage IP67
A quality product from Knightsbridge in the LED Drivers/Controllers category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP67
- ✓ Energy efficient 40 W consumption
- ✓ 3 Years manufacturer warranty
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/236f6e9c-98e1-4cdc-a1f0-bb54fde161a5.PDF
Category
LED Drivers/Controllers
Product
Driver
Type
Constant Voltage
Primary Voltage
230 V
Secondary Voltage
24 V
Secondary Voltage Type
DC
Secondary Current
0|1.67 A
Dimmable
N
Wattage
40 W
Ingress Protection
IP67
Material
Aluminium
Colour
Grey

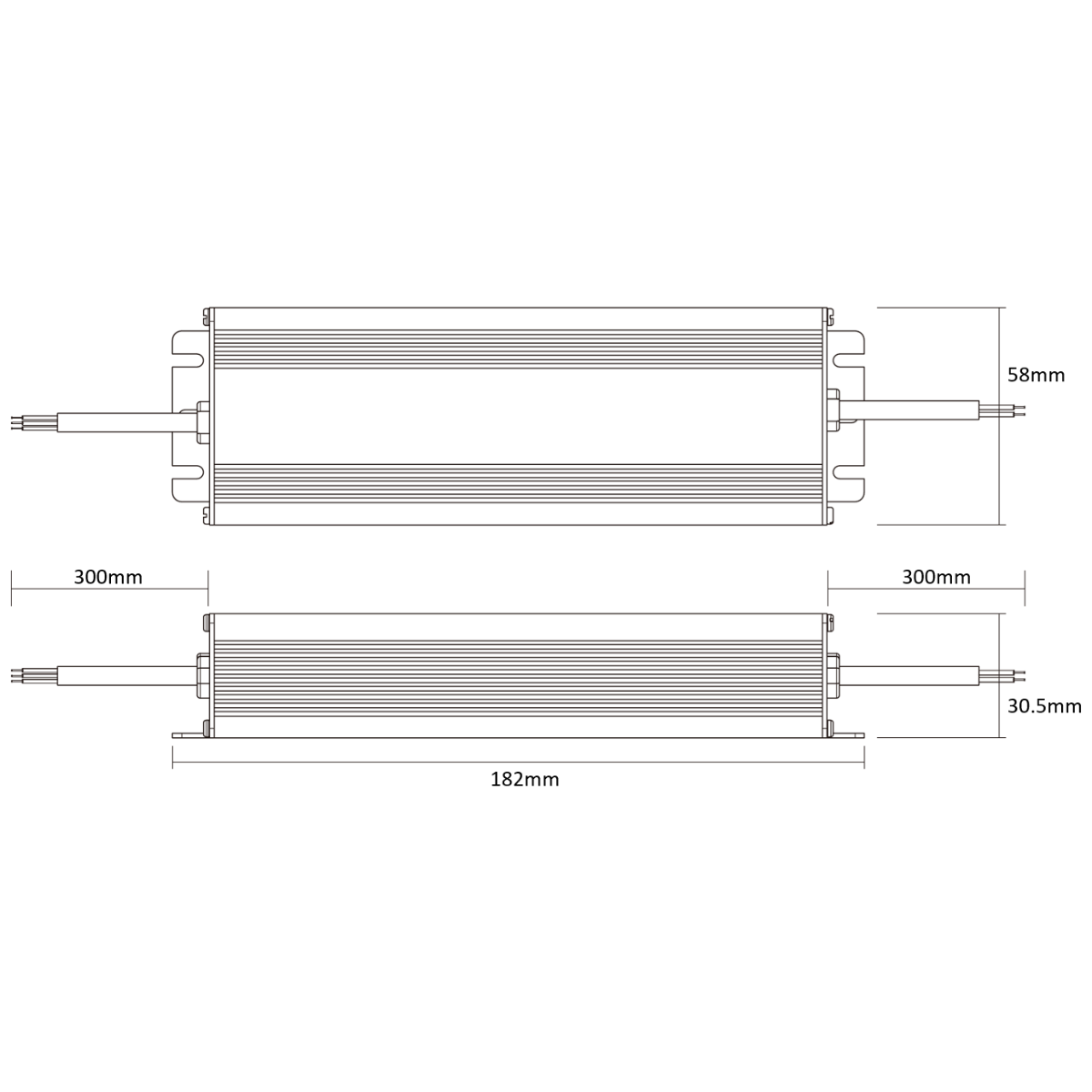

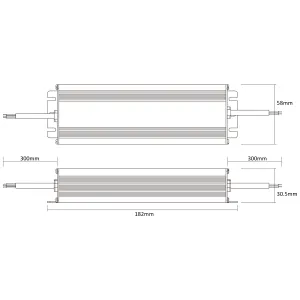

Length
182 mm
Height
30 mm
Width
58 mm
Frequency
50 Hz
Minimum Operating Temperature
-20 Degrees C
Maximum Operating Temperature
50 Degrees C
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
40W 24V DC
Finish
Grey Aluminium
Unit Weight
0.55 kg
