Knightsbridge IP20 12V 25W DC Dimmable LED Driver - Constant Voltage
SKU:
12DC25D
Brand:
Knightsbridge
Available to Order
12V IP20 25W constant voltage dimmable driverFor internal use onlyPlease check dimmer compatibility before installation
Key Features
✓ Max. output 25W
✓ Dimmable with most trailing ed...
✓ Protections; open circuit, sho...
✓ SELV output
📝 Product Description
IP20 12V 25W DC Dimmable LED Driver - Constant Vol
📋 Detailed Information
12V IP20 25W constant voltage dimmable driverFor internal use onlyPlease check dimmer compatibility before installation
⚡ Key Features
- ✓ Max. output 25W
- ✓ Dimmable with most trailing edge dimmer
- ✓ Protections; open circuit, short circuit, overload, over temperature
- ✓ SELV output
- ✓ Protection Class II
ℹ️ Product Information
🏭
Brand
Knightsbridge
📋 Technical Specifications
Brand
Knightsbridge
Family
LIGHTING
Range
LED DRIVERS
Dimming with push button
Dimming Sine Wave Reduction
Dimming DALI
Dimming programmable
Dimming GPRS
Dimming 0 10 V
Dimming 1 10 V
No dimming function
Dimming potentiometer (integrated)
Dimming DSI
Compatible with Apple HomeKit
Compatible with Google Assistant
Compatible with Amazon Alexa
Housing
Plastic housing

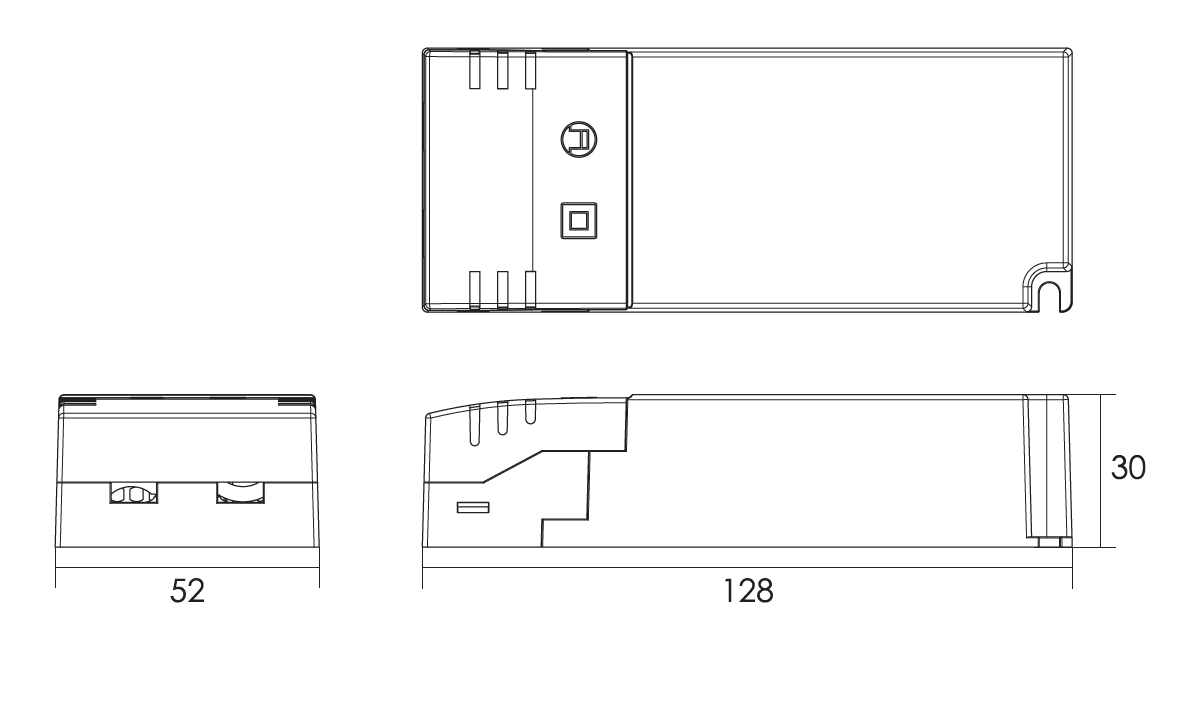

Height
30
Width
52
Protection class according to IEC 61140
II
IFTTT support available
Suitable for outdoor use
Output voltage
12
Output power
25
Degree of protection (IP rating)
IP20
Suitable for constant current
Suitable for constant voltage
Suitable for DC voltage (primary side)
Length
128
Dimming trailing edge
Dimming leading edge
Dimming Zigbee
Dimming Touch and Dim
Dimming RF
Dimming LineSwitch
Dimming mains voltage modulation
Dimming DMX
Diameter
-
mm
Output current
-
mA
Constant luminous flux control
-
