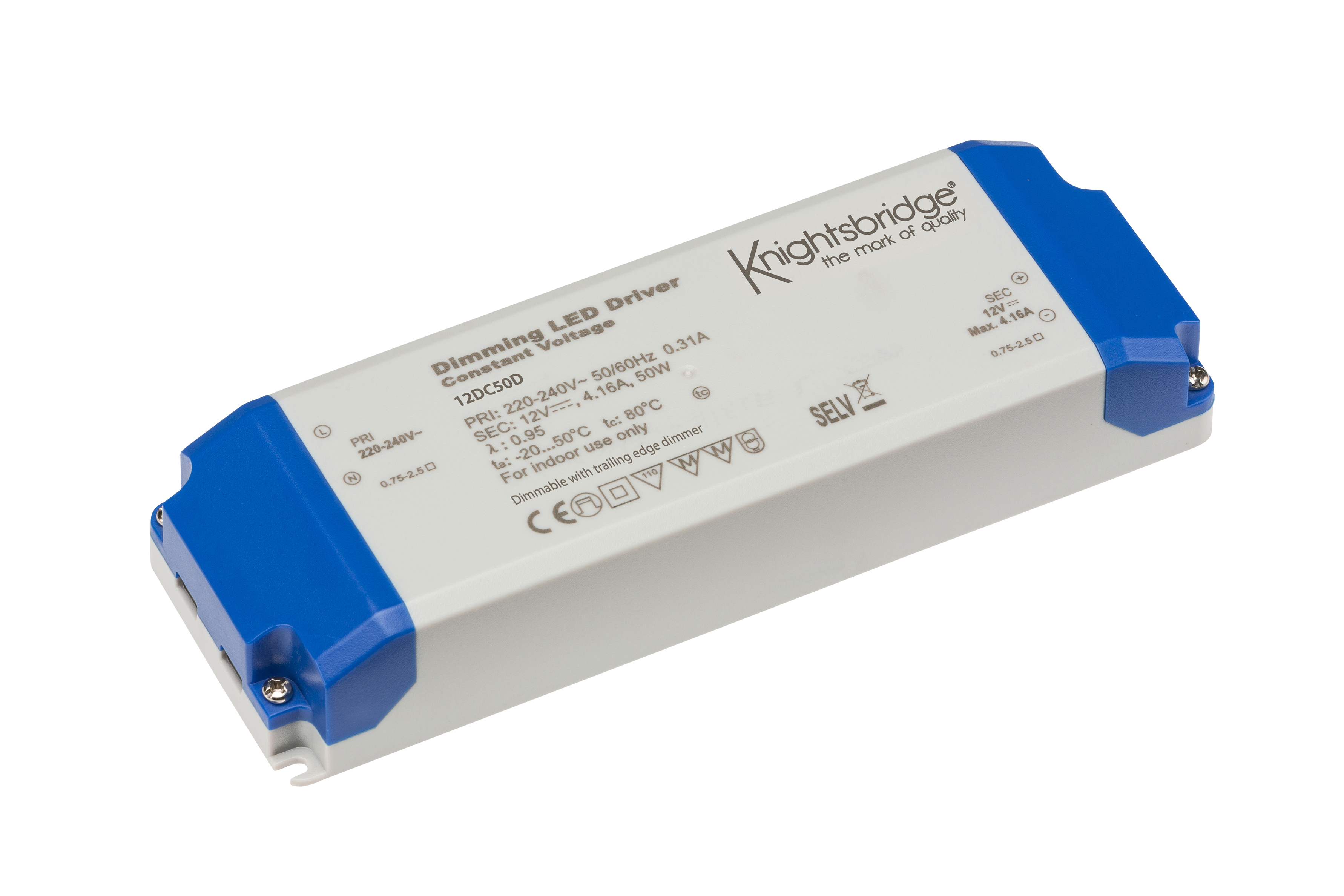

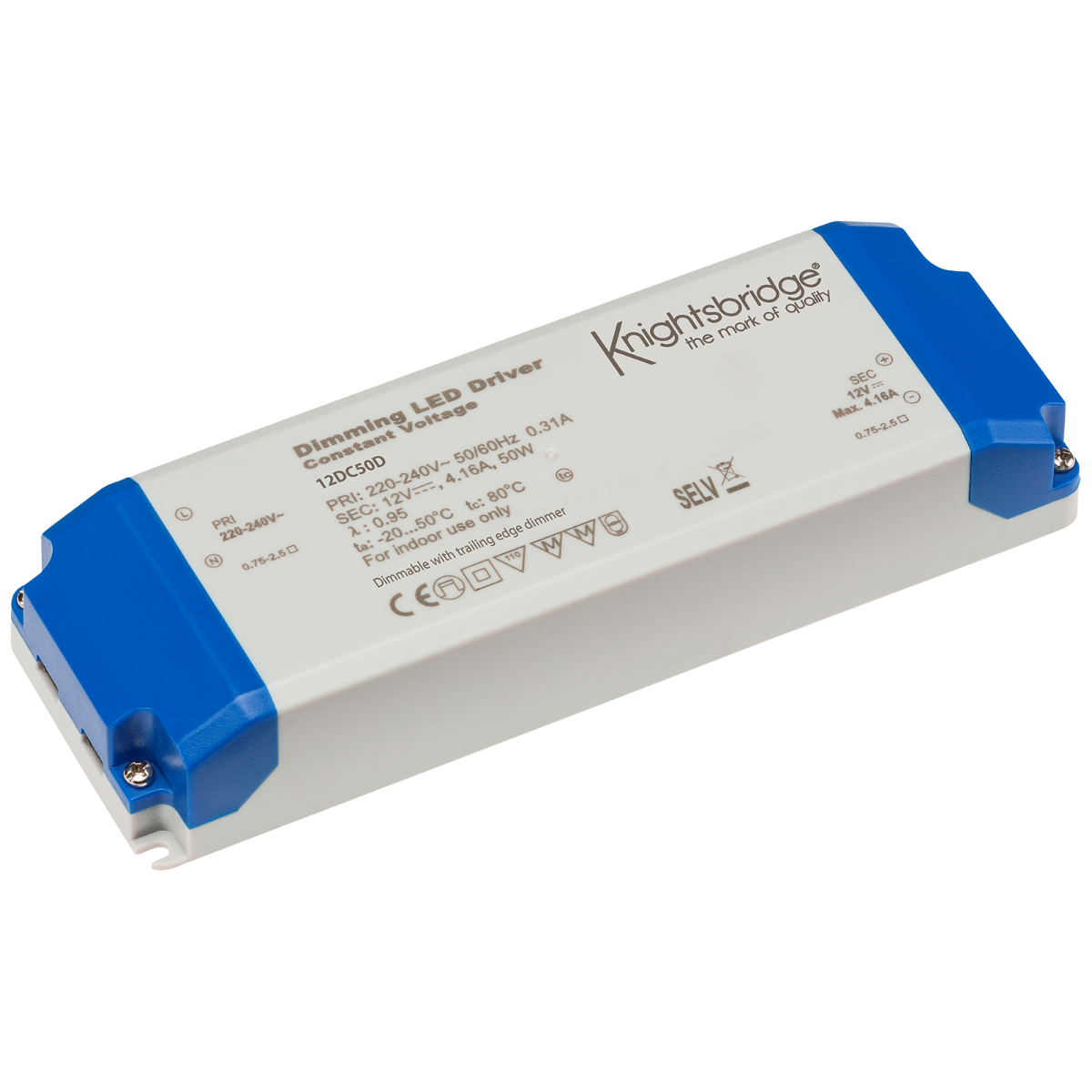

Knightsbridge IP20 12V 50W DC Dimmable LED Driver - Constant Voltage
SKU:
12DC50D
Brand:
Knightsbridge
Available to Order
Key Features
✓ Dimmable for adjustable lighti...
✓ Max. output 50W
✓ Ingress protection rated IP20
✓ Dimmable with most trailing ed...
📝 Product Description
IP20 12V 50W DC Dimmable LED Driver - Constant Vol
📋 Detailed Information
Driver, LED Constant Voltage Dimmable IP20
A quality product from Knightsbridge in the LED Drivers/Controllers category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Dimmable for adjustable lighting control
- ✓ Max. output 50W
- ✓ Ingress protection rated IP20
- ✓ Dimmable with most trailing edge dimmer
- ✓ Energy efficient 50 W consumption
- ✓ Protections; open circuit, short circuit, overload, over temperature
- ✓ Long lasting 50000 Hours average lifespan
- ✓ 3 Years manufacturer warranty
ℹ️ Product Information
🏭
Brand
Knightsbridge
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/6f255500-1765-4ef7-85b3-7056cb0f791d.PDF
Category
LED Drivers/Controllers
Range
LED DRIVERS
Family
LIGHTING
Brand
Knightsbridge
IFTTT support available
Suitable for DC voltage (primary side)
Suitable for constant voltage
Suitable for constant current
Suitable for outdoor use
Dimming trailing edge
Dimming leading edge
Dimming Zigbee
Dimming Touch and Dim
Dimming RF
Dimming LineSwitch
Dimming mains voltage modulation
Dimming DMX
Dimming DSI
Dimming with push button
Dimming Sine Wave Reduction
Dimming DALI
Dimming programmable
Dimming GPRS
Dimming 0 10 V
Dimming 1 10 V
No dimming function
Dimming potentiometer (integrated)
Compatible with Apple HomeKit
Compatible with Google Assistant
Compatible with Amazon Alexa
Output power
50
Output voltage
12
Degree of protection (IP rating)
IP20

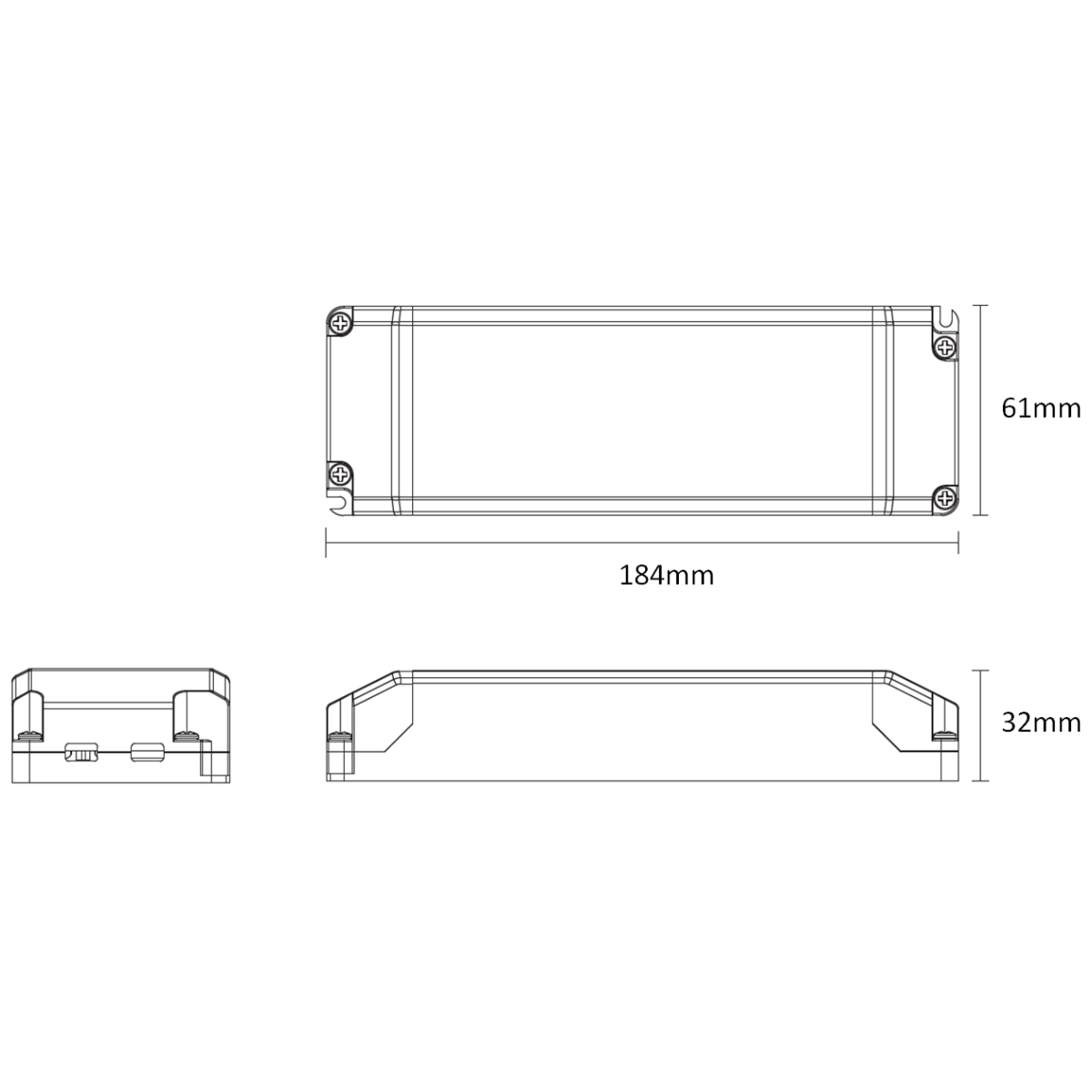

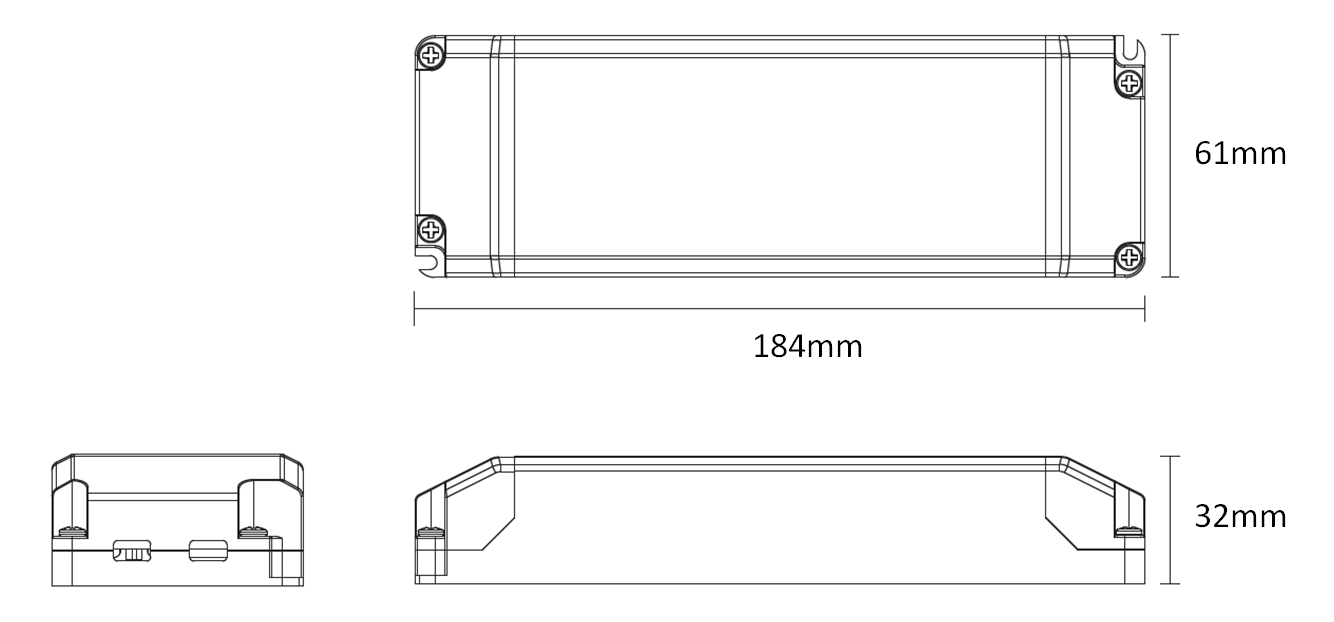

Length
184 mm
Housing
Plastic housing
Height
32 mm
Width
61 mm
Protection class according to IEC 61140
II
Product
Driver
Type
Constant Voltage
Primary Voltage
230 V
Secondary Voltage
12 V
Secondary Voltage Type
DC
Secondary Current
0|4.16 A
Dimmable
Y
Wattage
50 W
Ingress Protection
IP20
Material
ABS
Colour
White
Average Lifespan
50000 Hours
Frequency
50 Hz
Minimum Operating Temperature
-20 Degrees C
Maximum Operating Temperature
50 Degrees C
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
50W 12V DC
Finish
White ABS
Constant luminous flux control
-
Output current
-
mA
Diameter
-
mm
Unit Weight
0.24 kg
