Knightsbridge Driver, Constant Voltage IP67
SKU:
24DCIP100A
Brand:
Knightsbridge
Available to Order
Key Features
✓ Ingress protection rated IP67
✓ Energy efficient 100 W consump...
✓ 3 Years manufacturer warranty
📝 Product Description

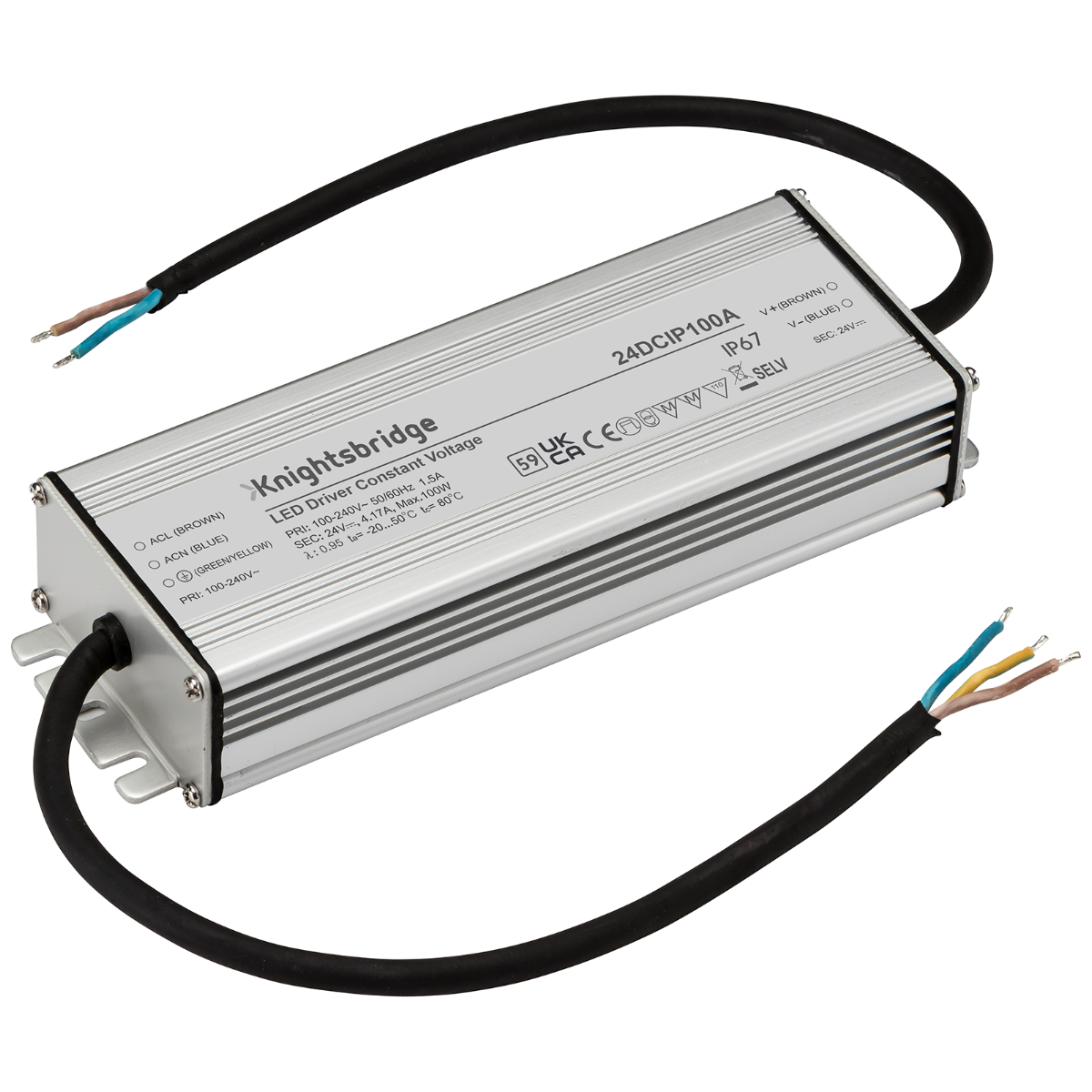

24V IP67 100W DC LED Driver - Constant Voltage
📋 Detailed Information
Driver, Constant Voltage IP67
A quality product from Knightsbridge in the LED Drivers/Controllers category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP67
- ✓ Energy efficient 100 W consumption
- ✓ 3 Years manufacturer warranty
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/8b61e7b6-c89f-4ded-93b4-7a914e9a1e78.PDF
Category
LED Drivers/Controllers
Product
Driver
Type
Constant Voltage
Primary Voltage
230 V
Secondary Voltage
24 V
Secondary Voltage Type
DC
Secondary Current
0|4.17 A
Dimmable
N
Wattage
100 W
Ingress Protection
IP67
Material
Aluminium
Colour
Grey

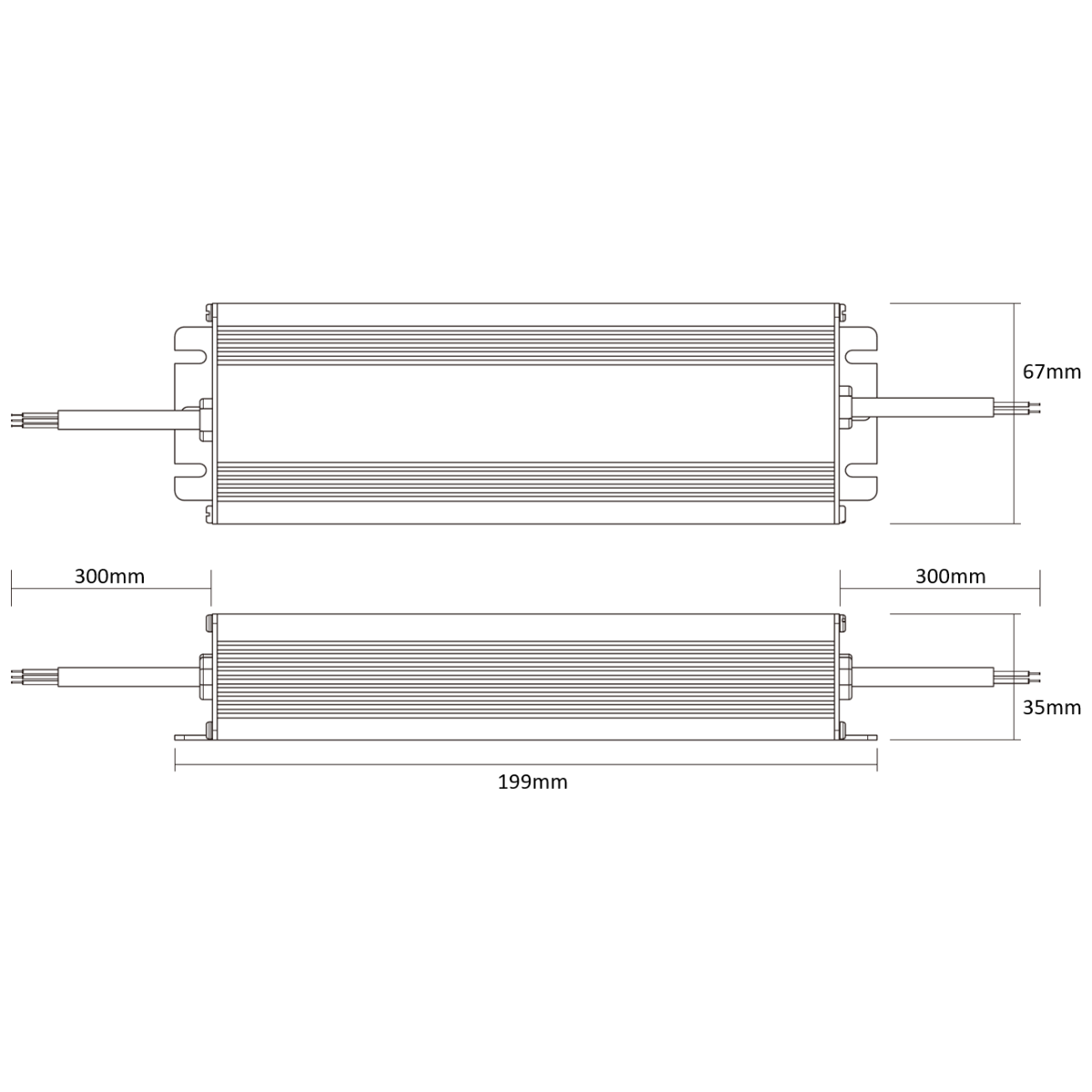

Length
199 mm
Height
35 mm
Width
67 mm
Frequency
50 Hz
Minimum Operating Temperature
-20 Degrees C
Maximum Operating Temperature
50 Degrees C
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
100W 24V DC
Finish
Grey Aluminium
Unit Weight
0.8 kg
