Knightsbridge Driver, Constant Voltage IP20
SKU:
24DC75
Brand:
Knightsbridge
Available to Order
Key Features
✓ Ingress protection rated IP20
✓ Energy efficient 75 W consumpt...
✓ 3 Years manufacturer warranty
📝 Product Description

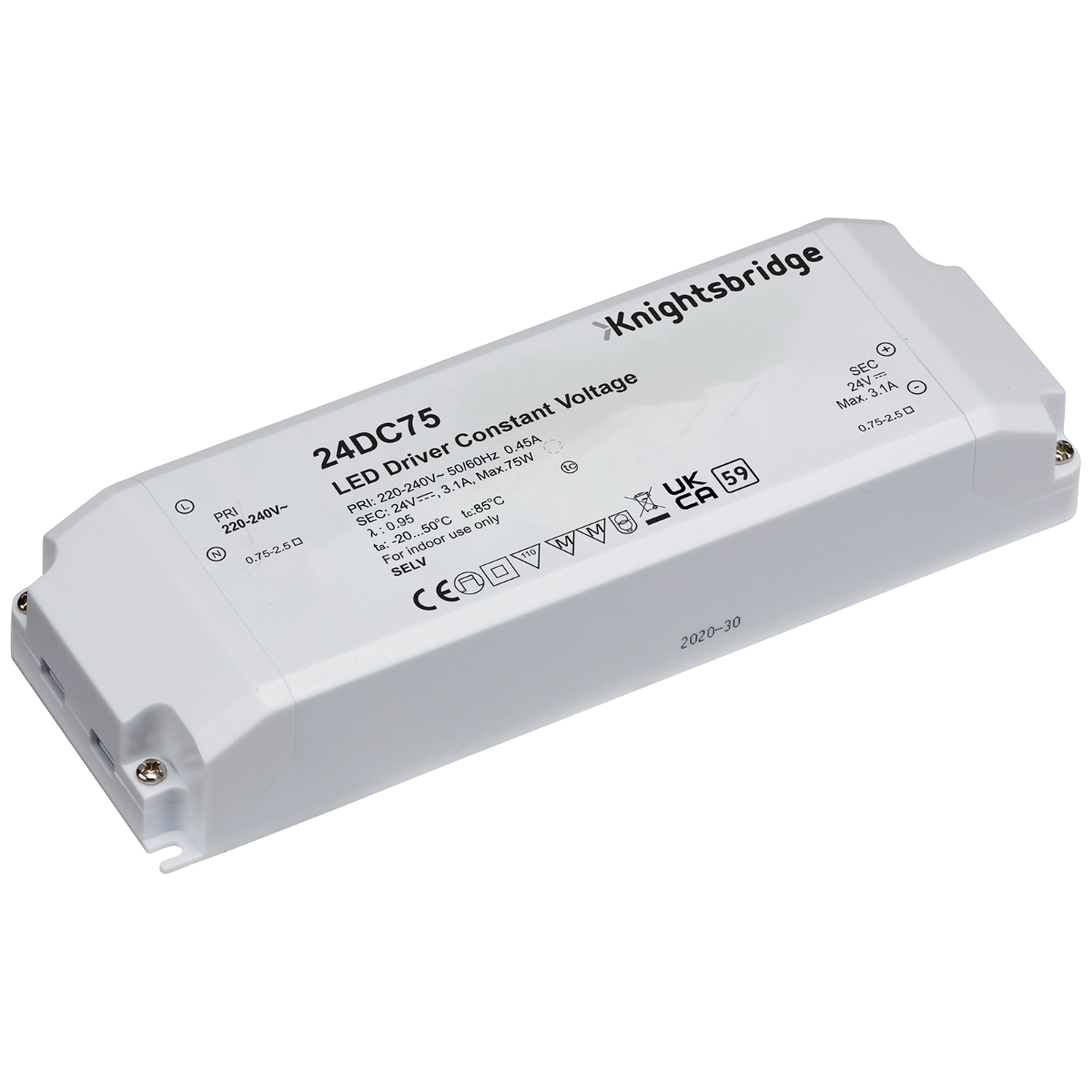

IP20 24V 75W DC LED Driver - Constant Voltage
📋 Detailed Information
Driver, Constant Voltage IP20
A quality product from Knightsbridge in the LED Drivers/Controllers category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP20
- ✓ Energy efficient 75 W consumption
- ✓ 3 Years manufacturer warranty
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/882fc8bf-5306-495a-ab23-dbb396f06962.PDF
Category
LED Drivers/Controllers
Product
Driver
Type
Constant Voltage
Primary Voltage
230 V
Secondary Voltage
24 V
Secondary Voltage Type
DC
Secondary Current
0|3.1 A
Dimmable
N
Wattage
75 W
Ingress Protection
IP20
Material
Polycarbonate PC
Colour
White

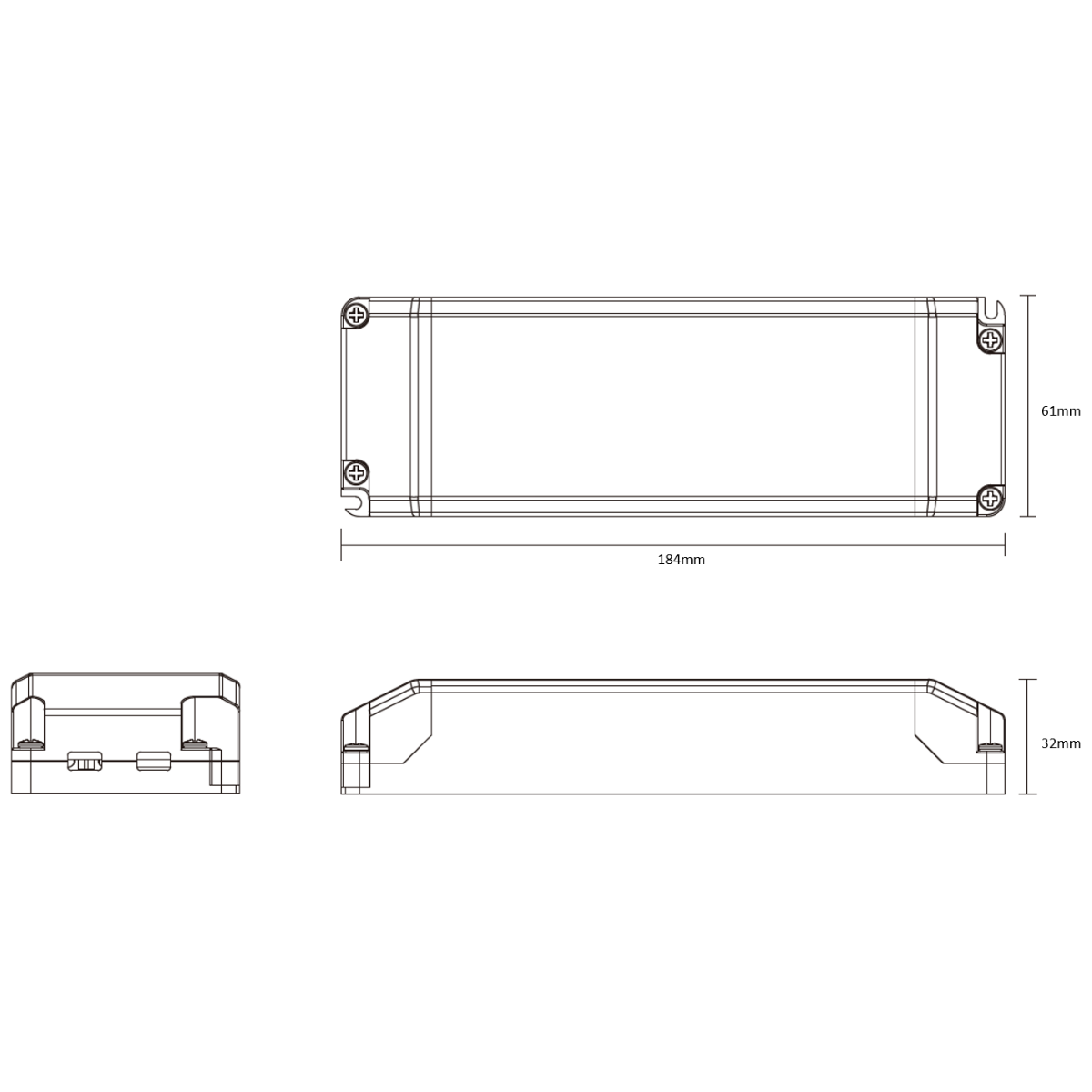

Length
184 mm
Height
32 mm
Width
61 mm
Frequency
50 Hz
Minimum Operating Temperature
-20 Degrees C
Maximum Operating Temperature
50 Degrees C
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
75W 24V DC
Finish
White Polycarbonate
Unit Weight
0.27 kg
