Knightsbridge Driver, LED Constant Voltage IP20
SKU:
24DC150M
Brand:
Knightsbridge
Available to Order
Key Features
✓ Ingress protection rated IP20
✓ Energy efficient 150 W consump...
✓ 3 Years manufacturer warranty
📝 Product Description

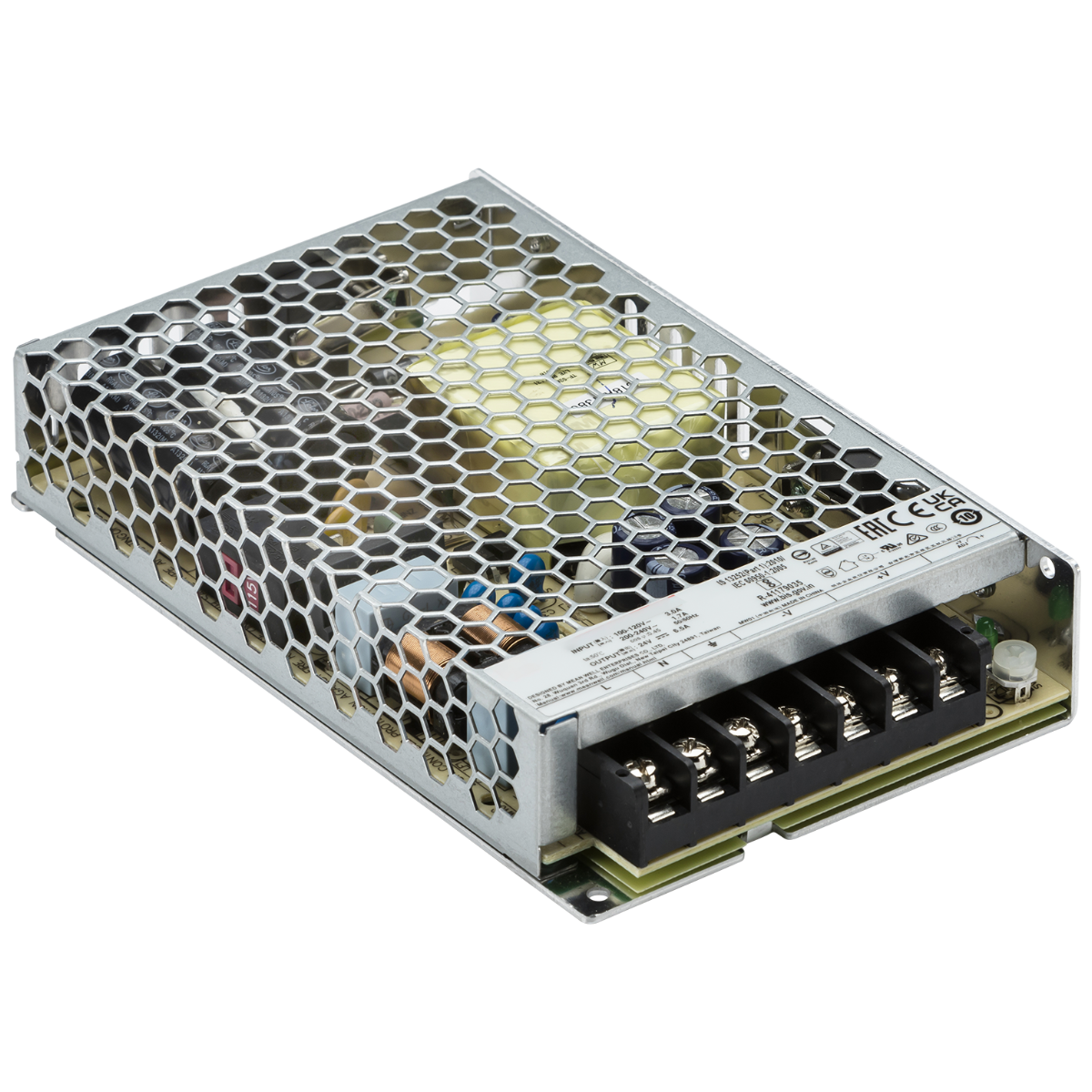

24V IP20 150W DC Driver - Constant Voltage
📋 Detailed Information
Driver, LED Constant Voltage IP20
A quality product from Knightsbridge in the LED Drivers/Controllers category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP20
- ✓ Energy efficient 150 W consumption
- ✓ 3 Years manufacturer warranty
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/2cab09eb-11e5-49b7-ba71-c1253788e112.PDF
Category
LED Drivers/Controllers
Product
Driver
Type
Constant Voltage
Primary Voltage
110|230 V
Secondary Voltage
24 V
Secondary Voltage Type
DC
Secondary Current
0|6.5 A
Dimmable
N
Wattage
150 W
Ingress Protection
IP20
Material
Aluminium
Colour
Silver

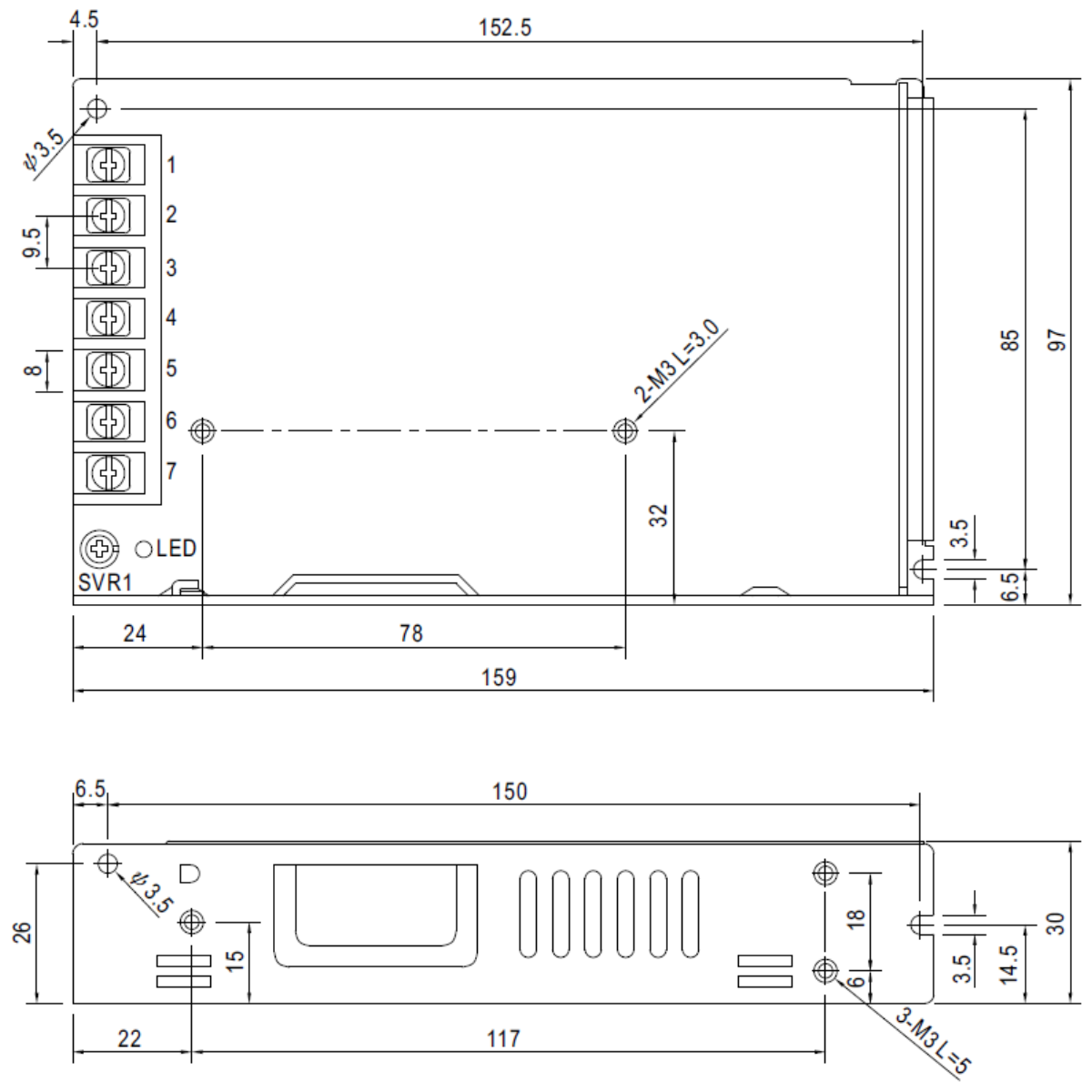

Length
159 mm
Width
97 mm
Depth
30 mm
Maximum Operating Temperature
50 Degrees C
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
150W 24V DC
Finish
Stainless Steel
Unit Weight
0.45 kg
📚 Technical Documents & Datasheets
📄
Catalogue Page
dd243700-27b9-4b59-a4ea-da5e990635f7.PDF
Click to download
📄
Installation Instructions
6e7c8bcd-3e08-4fce-a5ad-858ab5e4aa6c.PDF
Click to download
📄
Technical Data Sheet
8baae05c-d4b5-4bb3-ad1a-dae1d8714879.PDF
Click to download
📄
Certifications
f54e6361-8ee5-4b44-b669-1ad9b8a2fedd.PDF
Click to download
📄
Certifications
2cab09eb-11e5-49b7-ba71-c1253788e112.PDF
Click to download
