Centrifugal Inline Fan, 150mm
SKU:
JL-150
Brand:
EnviroVent
Available to Order
The JETLINE is a high performance and low profile centrifugal inline fan for circular ducts, ideal for domestic and commercial applications. Designed...
Key Features
✓ High performance centrifugal t...
✓ Low profile compact casing
✓ Two mounting positions for sup...
✓ Airtight joints
📝 Product Description
(BOE) JETLINE-150 (220-240V50/60HZ) N8
📋 Detailed Information
The JETLINE is a high performance and low profile centrifugal inline fan for circular ducts, ideal for domestic and commercial applications. Designed for high aerodynamic performance, the casing is manufactured from galvanised sheet steel, with the terminal box and mounting bracket designed with least impact on the product's profile.
⚡ Key Features
- ✓ High performance centrifugal technology
- ✓ Low profile compact casing
- ✓ Two mounting positions for support
- ✓ Airtight joints
- ✓ Airflow guide vanes to reduce sound level
- ✓ High performance impeller
- ✓ Range comprises 7 diameters covering a flow range of 72l/s to 447 l/s
- ✓ Built-in IP65 terminal box
ℹ️ Product Information
🏭
Brand
EnviroVent
📋 Technical Specifications
Brand
EnviroVent
Range
JETLINE
Family
Centrifugal Inline Fans
Suitable for low current control
Power consumption
0.03
Connection
Insert end
Length
279
Housing material
Steel-treated
Connection voltage
230
Electrical connection
Terminals
Degree of protection (IP rating)
IP44
With thermal overload protection

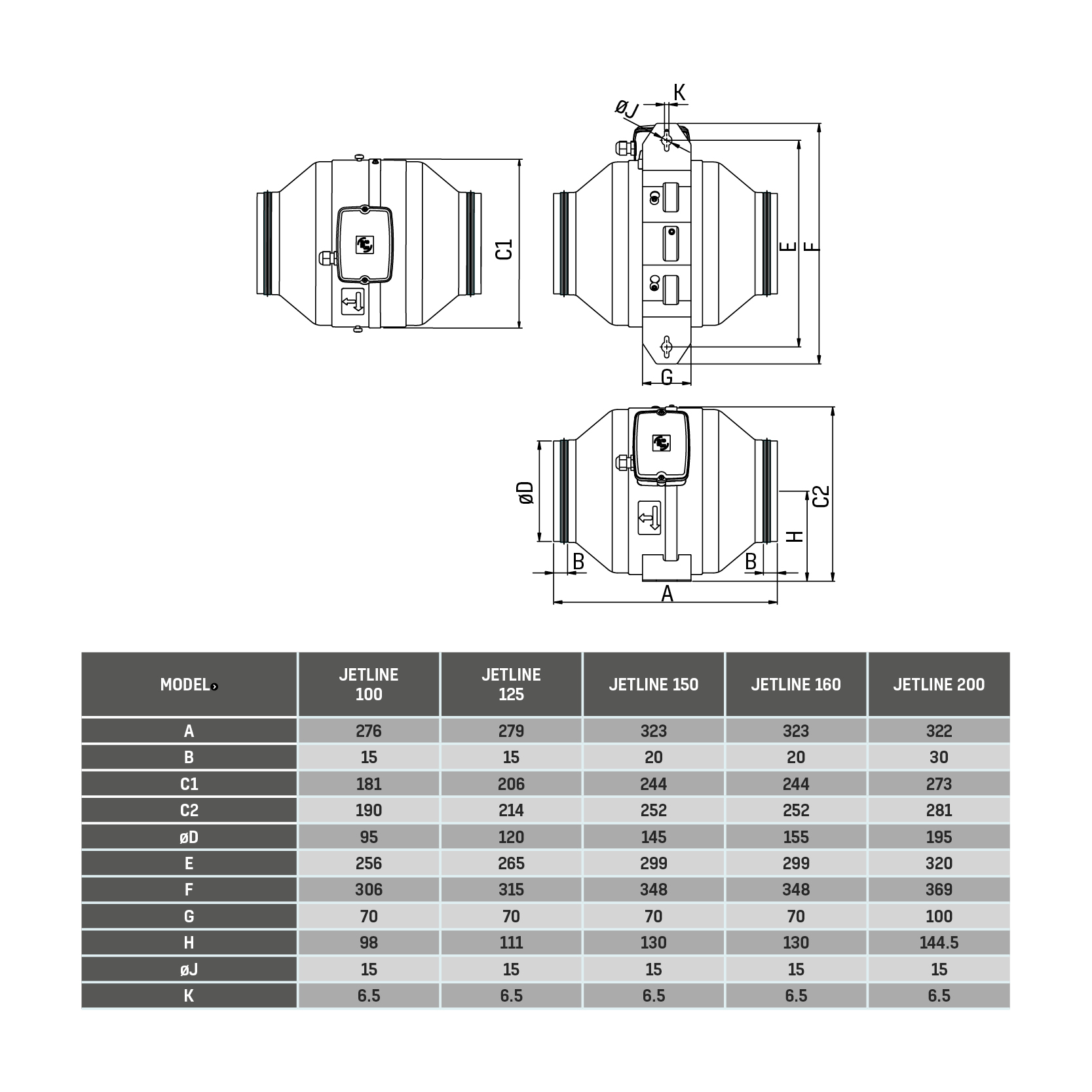

Diameter, housing
206
2 speed motor
Suitable for frequency control
Air volume, free flow
393
Pole reversible
Direct current motor
Indirect drive
Maximum air temperature
40
Duct diameter
125
Suitable for transformer control
Suitable for electronic control

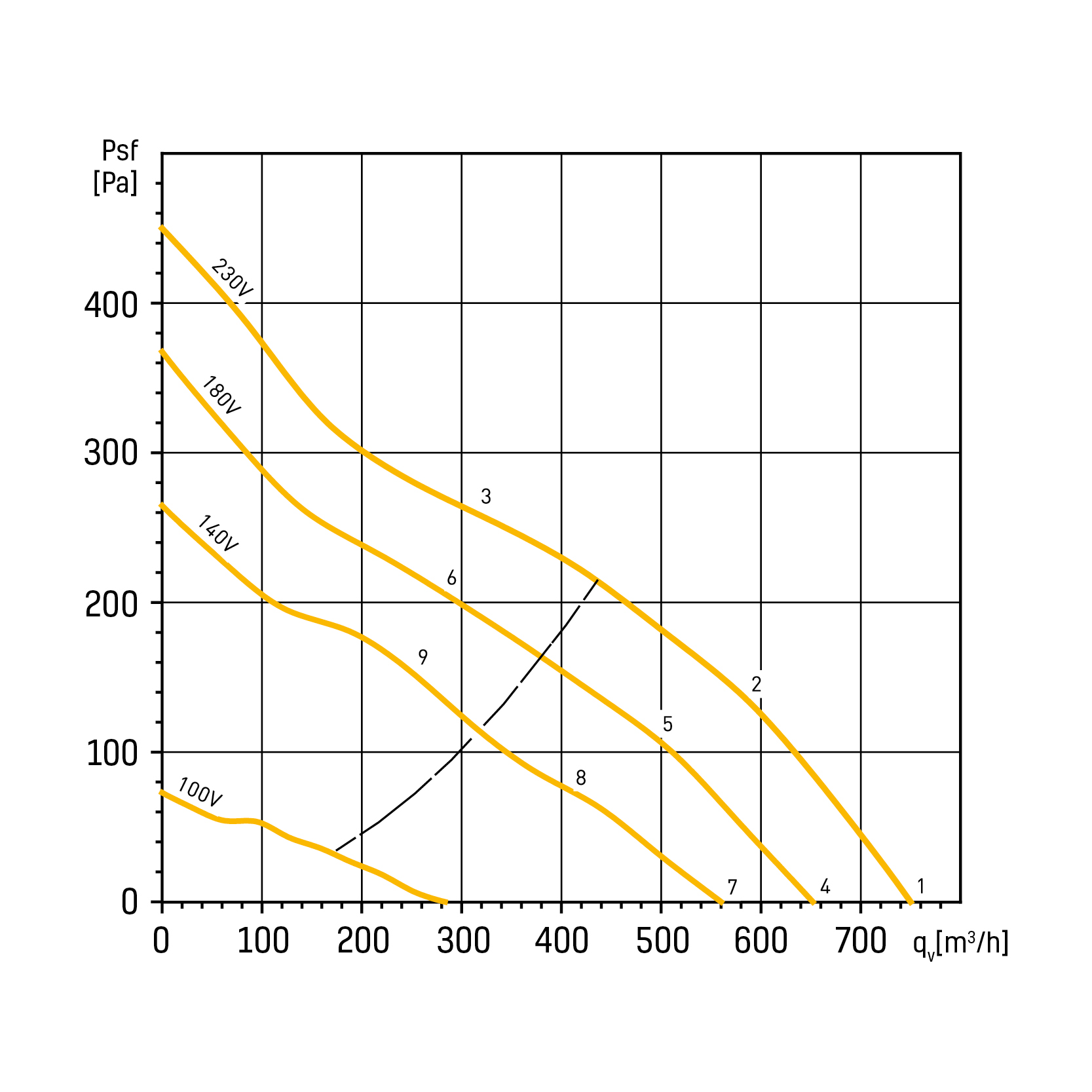

Pressure 3
200
Pressure 2
100
Air volume at pressure 3
97
Air volume at pressure 2
292
